The Yamaha RX-Z 135 Model is a Standard Motorcycle Manufactured by Yamaha. This Motorcycle Has an engine of Air-Cooling, 2-stroke, single-cylinder,135cc Engine. This Motorcycle Has been Added to 14.0 Horsepower. The Bike's top speed is Company Claimed To Be Around 145 - 180 KM/H (Approx). Yamaha RX-Z 135 Acceleration is good which Can Reach 0 to 100 in 7.0 Seconds. The Yamaha RX-Z 135 Bike's fuel tank capacity is 13.0 liters.

    Yamaha RX-Z 135
    Yamaha RX-Z 135

    Yamaha RX-Z 135 Gear Ratio

    I    2.833

    II   1.813

    III  1.368

    IV  1.143

    V   1.000
    VI  0.917

    Yamaha RX-Z 135 Fuel Consumption

    The company claimed the mileage of the Yamaha RX-Z 135 is 25-30 kmpl. (Avg.).

    Yamaha RX-Z 135 Tire Pressure

    Yamaha RX-Z 135 Company Recommended Front Tire Pressure is 28 psi and The Rear Tire Pressure is 32 psi.

    Yamaha RX-Z 135 Spark Plug Gap

    For this motorcycle, the manufacturer advises using spark plug gaps between 0.7-0.8 mm (0.028-0.031 inches).

    Yamaha RX-Z 135 Chain Freeplay

    20 mm - 30 mm

    Yamaha RX-Z 135 Generator

    A.C. magneto

    Yamaha RX-Z 135 Specified Fuse

    Main - 7A × 1
    Reserve - 7A × 1

    Yamaha RX-Z 135 Carburetor Main Jet


    Yamaha RX-Z 135 Carburetor Main Air Jet


    Yamaha RX-Z 135 Carburetor Pilot Jet


    Yamaha RX-Z 135 Carburetor Pilot Air Screw

    1 and 1/4

    Yamaha RX-Z 135 Carburetor Float Height

    0.2 in

    Yamaha RX-Z 135 Carburetor Fuel Level


    Yamaha RX-Z 135 Engine Idling Speed

    1250 ~ 1350 r/min

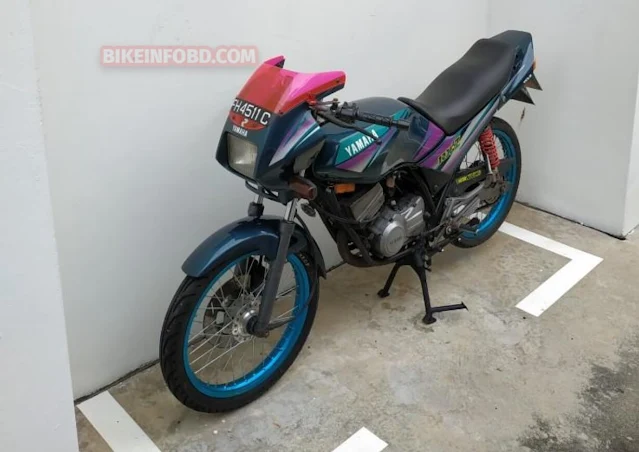

    Yamaha RX-Z 135 Photos

    Yamaha RX-Z 13
    Yamaha RX-Z 135

    Yamaha RX-Z 35
    Yamaha RX-Z 35

    Yamaha RX-Z
    Yamaha RX-Z 135

    Yamaha RX
    Yamaha RXZ 135

    Yamaha RX-Z 135 Wiring Diagram

    yamaha rxz 135 wiring diagram
    Yamaha RX-Z 135 Wiring Diagram

    Yamaha RX-Z 135 Technical Specifications

    More Specification
    Bike Brand Yamaha
    Model Name / Also called RX-Z 135
    Production Year (1985-2011) Global Variant and (1997-2003) Indian Variant
    Bike Type Standard
    Brand Origin Japan
    Engine Type 135cc, Air-Cooling, 2 stroke,single-cylinder,7 port torque induction
    Displacement (cc) 132 cc
    Maximum Power20 hp (15 kW) @ 8,500 rpm
    Maximum Torque 1.85 kgf (4.1 lbf) @ 7,500 rpm
    Ignition Electronic CDI
    Fuel SupplyVM26SS / Mikuni/ 1 Carburetor
    Bore & Stroke 56 mm x 54 mm
    Cooling System Air-cooled
    Compression Ratio7.0 : 1
    Brake Types  Disc & Drum
    Front Brake240mm Disc Brake
    Rear Brake130mm Drum Brake
    Wheels and Tyres

    Front Tire Size 2.75×18" – 4PR
    Rear Tire Size3.00×18" – 6PR
    Dimension and Weight
    Seat height 770 mm
    Overall height 1070 mm
    Overall length 1997 mm
    Overall width740 mm
    Ground Clearance 145 mm
    Dry weight 106 kg (234 lbs)
    Curb Weight
    Mileage and Performance
    0-60 Kmph-
    0-100 Kmph 7.0 sec.
    Top Speed 145 - 180 KM/H (Approx)
    Fuel Capacity 13.0 litres
    Fuel economy -
    Consumption Average 25-30 kmpl
    Fuel Type Petrol / Octane
    Recommended Oil Grade
    Fork Oil 10W or Equivalent
    Features Value and Safety
    Speedometer Yes
    Tachometer Yes
    Tripmeter Yes
    Electricals and Transmission
    Recommended Spark Plugs BR9ES/NGK

    Air Filter -

    Oil Filter -

    Voltage 12v
    Head Light 12v 35W
    Tail Light 12v 5W
    Gear Box 6-speed
    Final Drive Chain
    Clutch Wet Multi Disc
    Chain Size 428
    Chassis and Suspension
    Front SuspensionTelescopic hydraulic shock absorbers
    Rear Suspension 5 step adjustable hydraulic shock absorber
    Frame type Duplex Double Cradle
    More Specification
    Bike Colours Red, Blue and Purple
    No. of Cylinders 1 cylinder
